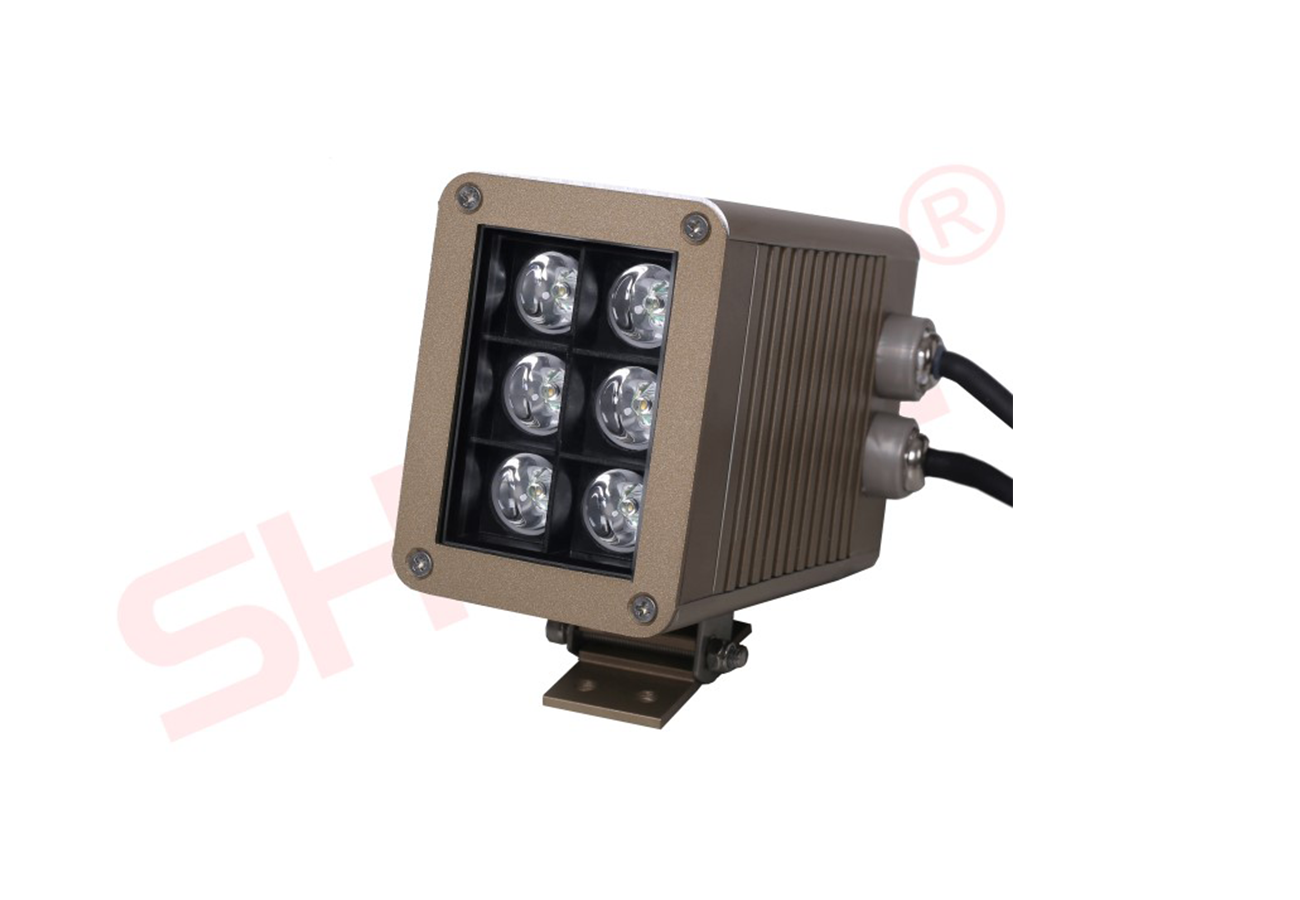

Flood Light 92x67x150mm

Model NO.
SL313.6792
Delivery:
EXW
Quantity:

Features

  • Optics : Optical private mode customized lens, with accurate light distribution;

  • Waterproof : Unique waterproof and heat radiation design, original triple structure with glue waterproof patent, private mold water-proof connector and reliable waterproof performance, up to IP68;

  • Installation: Modular standard design, optional combination, cost saving with fast and reliable installation;

  • Material : Aluminum alloy housing, customizable housing color, high strength tempered transparent glass;

  • Application : Indoor architectural lighting.


Size

Flood Light - LED light manufactures for architecture & landscape - Shone Lighting


Specification

  • LED Type: Cree, Osram, Lumileds, Nichia etc.

  • Input Voltage: 24VDC

  • Power Rating: 15W

  • Beam Angle: 12°

  • Color Temperature: Single color, RGB

  • Life Span: ≥ 50000 hrs

  • Housing: Aluminum alloy body, tempered glass cover

  • Dimension: 67x92x150mm

  • Weight: 1.5kg

  • Working Temperature: -30°C ~+65°C

  • Control: ON/OFF, DMX512

  • Ingress Protection: IP66

  • Classification: III


Fixture Options

SizePowerLensOptional accessories
92x67x150mm15W12°,15°,20°,30°,45°,60°,12*36°,25*45°,10*60°,30*65°boardwire groovecontinuous connection in series

cut-off frosed glass

anti-glare grilleanti-drop rope

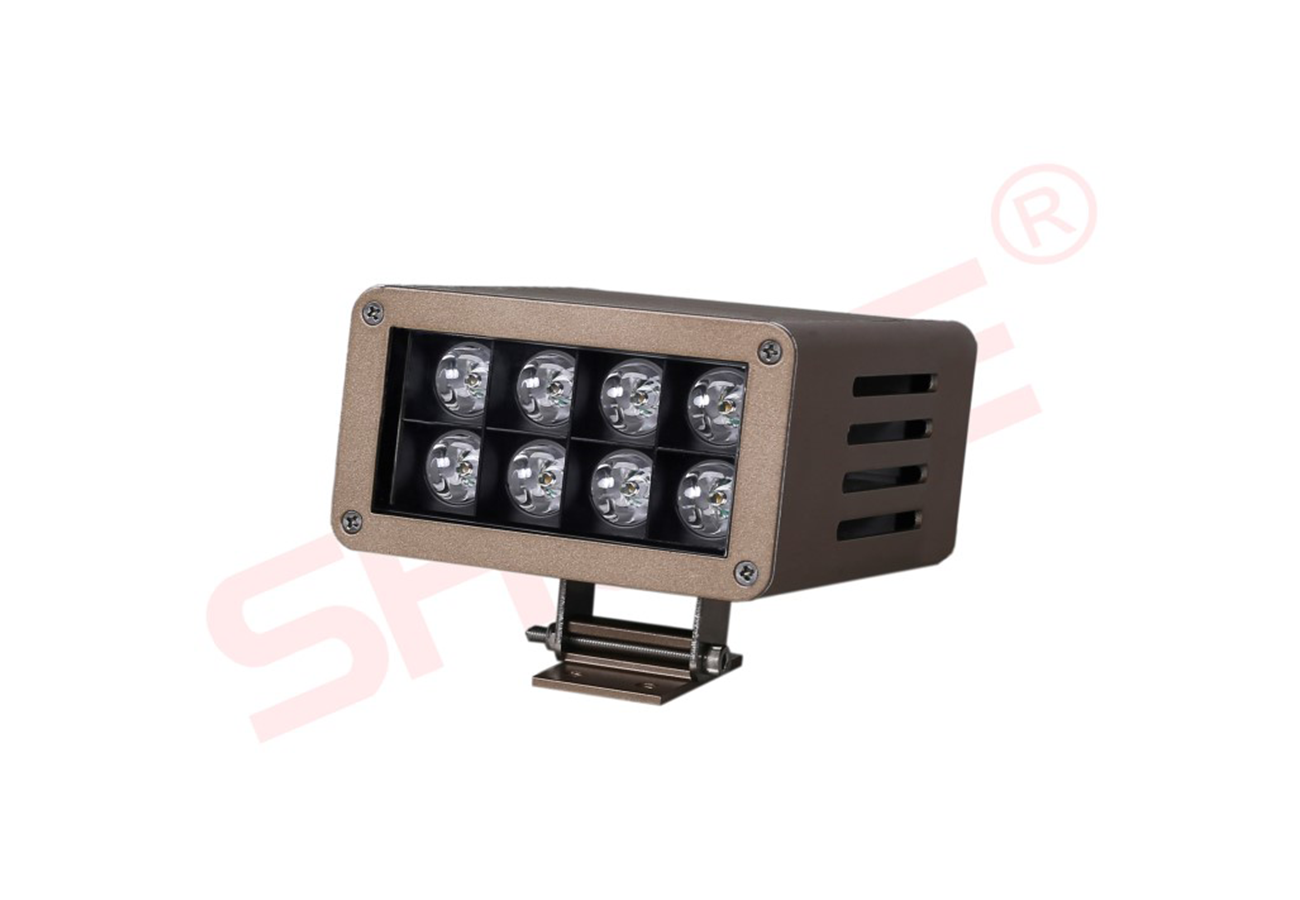

110x67x150mm20W
260x140x150mm50W
330x140x150mm70W
