LED Wall Washer 70x68x1000mm
LED Wall Washer 70x68x1000mm
LED Wall Washer 70x68x1000mm
LED Wall Washer 70x68x1000mm
LED Wall Washer 70x68x1000mm

LED Wall Washer 70x68x1000mm

Model NO.
SL413.7068
Delivery:
EXW
Quantity:

 Features

  • Optics: Private mode customized lens, with accurate light distribution;

  • Waterproof: Original triple structure with glue waterproof patent,private mold water-proof connector and reliable waterproof performance, up to IP68;

  • Installation: Modular fast installation, cost saving;

  • Material: Aluminum alloy housing, customizable housing color, high strength tempered transparent glass;

  • Application: Outdoor architectural lighting.

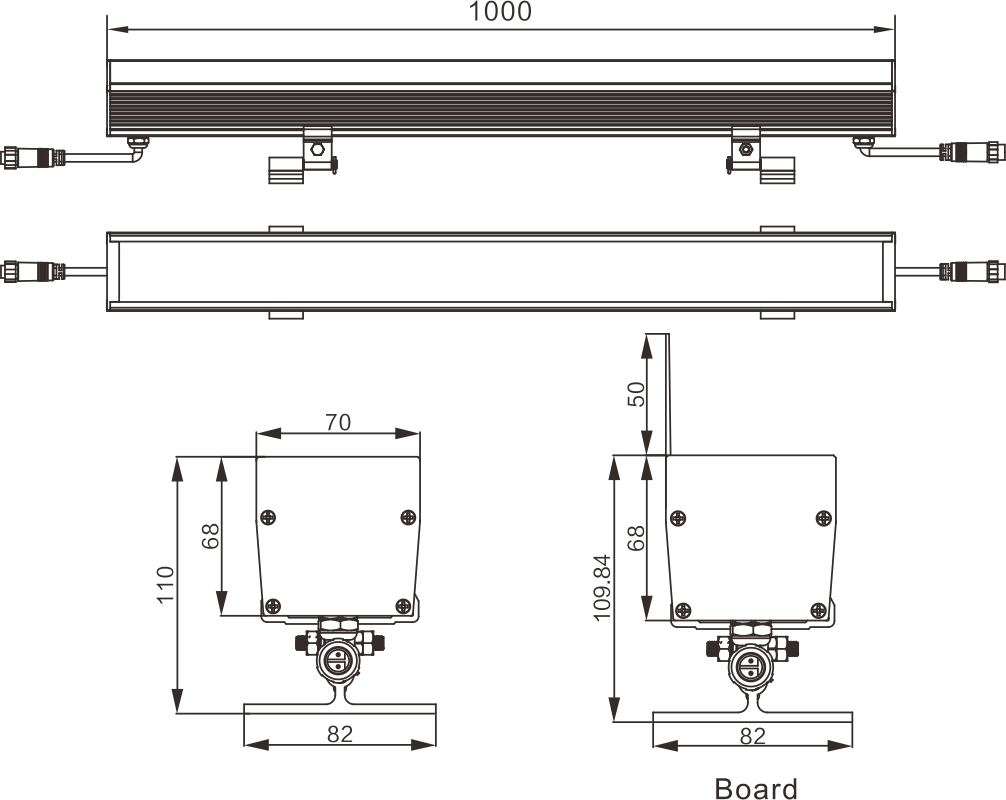

 Size


 Specification

  • LED Type: Cree, Osram, Lumileds, Nichia etc.

  • Input Voltage: 24VDC/48VDC

  • Power Rating:  110W

  • Beam Angle: 12°

  • Color Temperature: Single color, RGB, RGBW

  • Life Span:  ≥50000 hrs

  • Housing: Aluminum alloy body, translucent PC cover

  • Dimension: 70x68x1000mm

  • Weight:  3.8kg

  • Working Temperature:  -30°C ~+65°C

  • Control: ON/OFF, DMX512

  • Ingress Protection: IP66

  • Classification: III


 Fixture Options

SpecLengthPowerLens Optional accessories
70x68350mm27W

12°,15°,20°,30°,45°,60°,12*36°,25*45°,10*60°,30*65°

boardwire groovecontinuous connection in seriescut-off frosted glassanti-glare grilleanti-drop rope
500mm55W
1000mm110W
